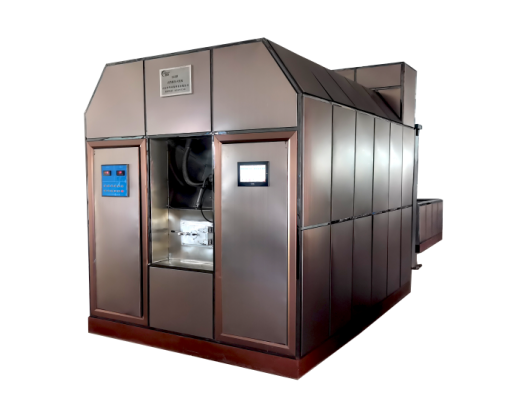

SKB-7E001 Cremation Machine

Short Description:




  • Product Type: SKB-7E001
  • Product Detail

    Quality Control

    Warranty

    Specification:

    NO



    1

    Overall Dimension

    2500*2100*2400mm Pipe6000mm

    2

    Total Weight

    8t

    3

    Chamber Dimension

    L*W*H=2050*750mm*830mm

    4

    Kang Dimension

    H*W=2000*700mm

    5

    Hearth Burning Presser

    -5~-35Pa

    6

    Hearth Burning Temperature

    700~900℃

    7

    Fire Resistance Temperature of Brick Structure

    Over 1200℃

    8

    The Ash Seam of Firebrick

    Less than 3mm

    9

    Surface Temperature of the cremation furnace rises

    The temperature rise of the furnace body surface is below 45℃, and the temperature rise of the handle of the observation hole is below 60℃

    10

    Induced Draft Fan

    5.5Kw

    11

    Air Blower

    3Kw

    12

    Total Power

    Less than 15Kw

    13

    Average Energy Consumption

    5-15Kg/corpse

    14

    Use of fuel

    0~-35# Light diesel oil

    15

    Burning Time

    35-50mins/corpse

    16

    Service Life of Kang Surface of Ash Pickup Truck

    600-800 corpses

    17

    Voltage

    380V 50HZ

    18

    Working Life

    More Than 10

    19

    Noise

    Less Than 65 db

    Attached: equipment effect drawing

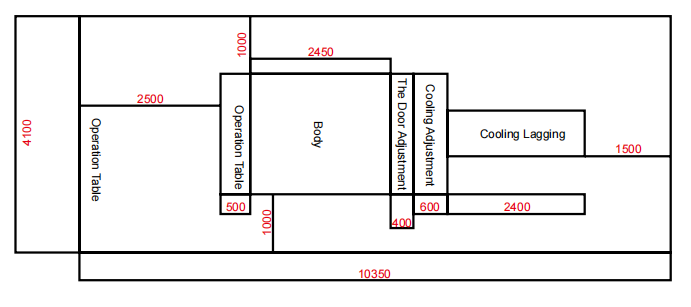

    Planform

    001

    Space Length: ≥10350mm

    Space Width: ≥4100mm

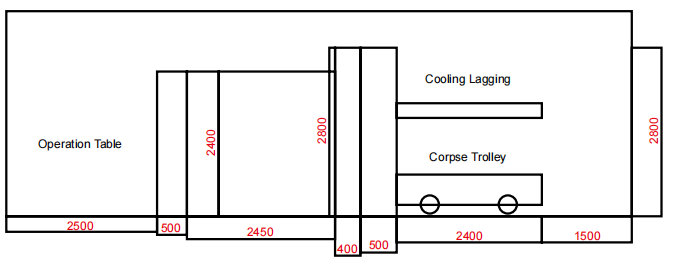

    Rightview:

    002

    003
